Complet Turbo Kits T3/T4 Turbo and Black Intercooler for 00-05 Volkswagen Golf/ Jetta 1.8T

Descrizione

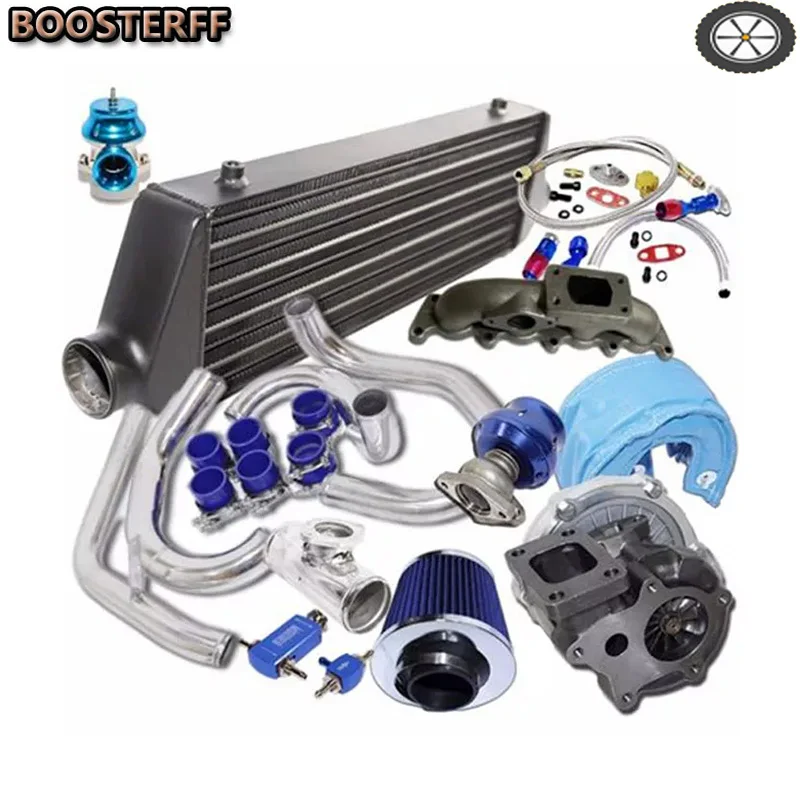

Complet Turbo Kit T3/T4 Turbo and Black Intercooler for 00-05 Volkswagen Golf/ Jetta 1.8T

Aplication:

VW Golf
2000-2001 GTI GLS Hatchback 2D
2000-2001 GLS Hatchback 4D
2002 GTI 337 Hatchback 2D
2003 GTI 20th Anniversary Hatchback 2D
2002-2005 GTI 1.8T Hatchback 2D

VW Jetta
2000-2005 GLS Sedan 4D
2001 2003 Wolfsburg Edition Sedan 4D
2002-2005 GLS Wagon 4D
2003 Wolfsburg Edition Wagon 4D
2003-2005 GL Sedan 4D
2003-2005 GL Wagon 4D
2004-2005 GLI Sedan 4D
1.8L 1781CC I4 GAS DOHC TURBOCHARGED ONLY
COLORS ARE RANDOMLY SELECTED

Turbo Charger T3/T4
3″ Inlet and 2″ Outlet
Hybrid Journal Bearing
Oil Cooling
450 HP
M10X1.25
T3 Flange
0.50 A/R Compressor Wheel (Cold Side)
EXD: 3″ (73.55MM)
IND: 1.99″ (57.75MM)
Trim 48.9
0.63 A/R Turbine Wheel (Hot Side)
EXD: 2.2″ (75.46MM)
IND 2.56″ (52.76mm)
Trim 61.9
5 Bolt Standard Hot Side
25-35 PSI Peak Power Performance Output Capability
Comes with Turbine heat shield blanket, cold air intake filter.

Intercooler

Overall Length 27″
Core Length 21″
Overall Height 7″
Overall Width 2.5″
Both Inlet/Outlet ports are 2.5″
Compress Air Flow Rate <350Cubic Feet/Min, Rated up to500 Max HP
Working Pressure 5~50PSI
Pressure Drop 2~5psi@35psi; 0.2~0.5psi@15psi
Design Bar and Plate
Construction Machine Cut and Stamped, Hand Welded
Works for Many Cars and Trucks

Cast Iron Turbo Manifold
Direct Bolt on
T3 Turbo Flange fits T3 or T/T3 Turbocharger
5mm/38mm Wastegate Flange

EM RS Blow off Valve
Made of High Quality CNS Billet Aluminum

Front Mount Intercooler Piping Kits
4 Pieces bolt-on Lightweight Aluminized Mandrel Bent Piping
Increase Air Flow, up to 10-20HP
High Pressure Silicone Hoses
Stainless Steel Clamps
EMUSA 38MM Adjustable Wastegate
Adjustable,4/6/8/10 PSI
High Polish Finish
CNC Machined
Proven Accuracy

Turbo Smart Style Manual Boost Controller
Oil Return Line& Oil Feed Line

Exactly Same as the Picture
