Application

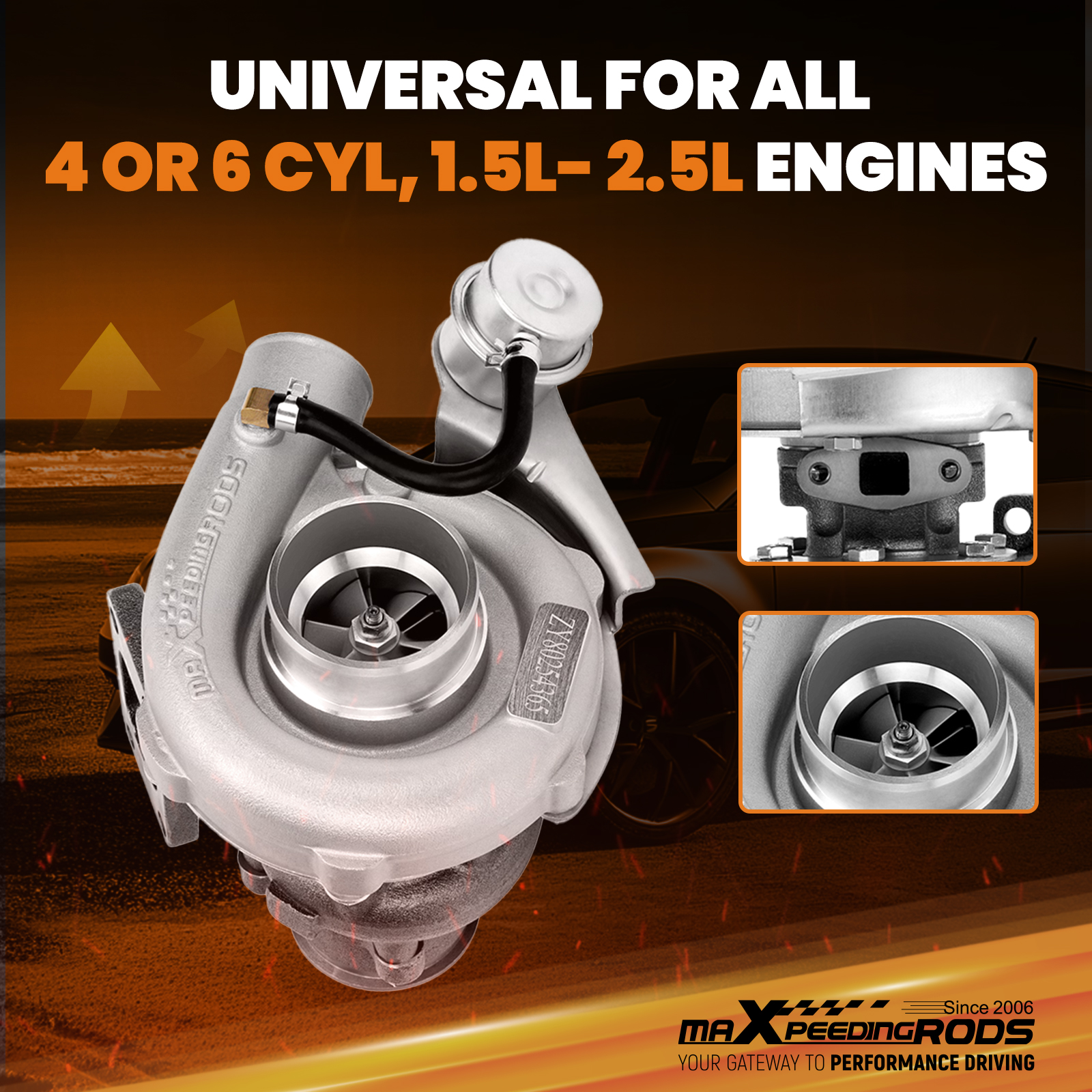

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled

Specification

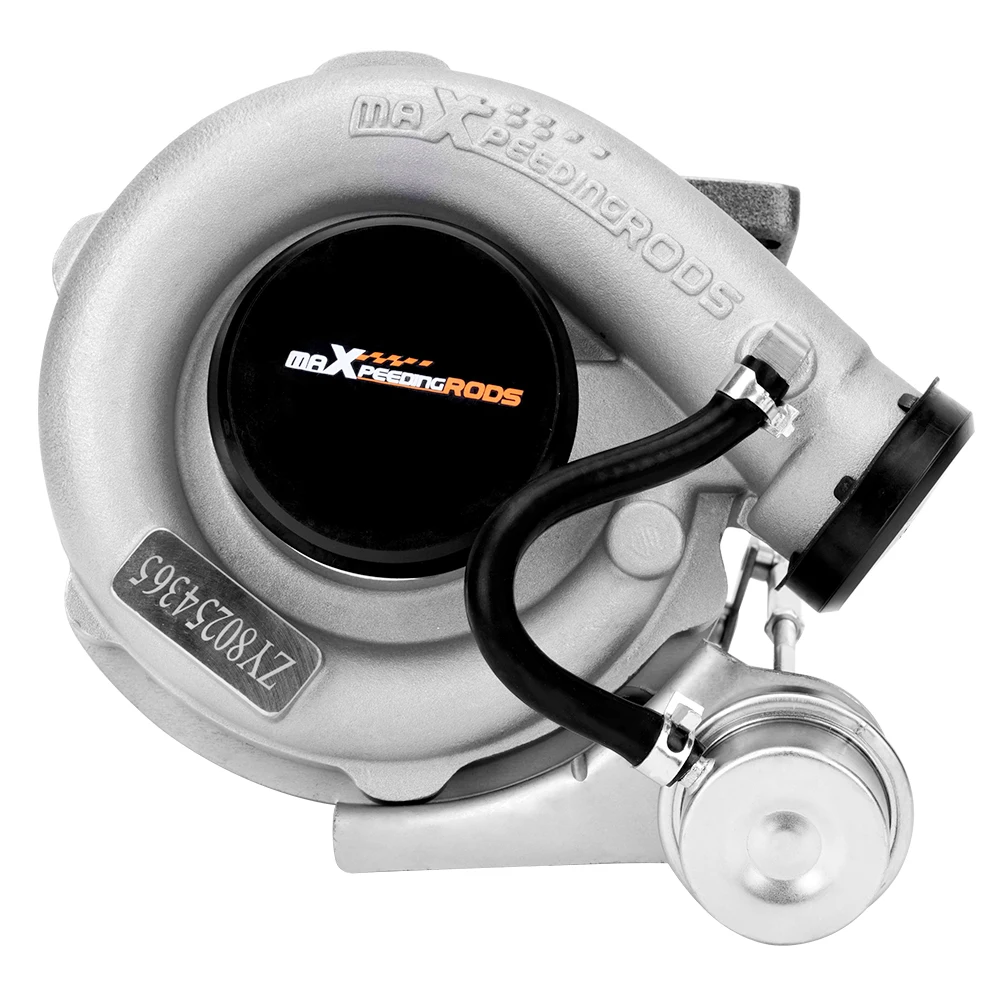

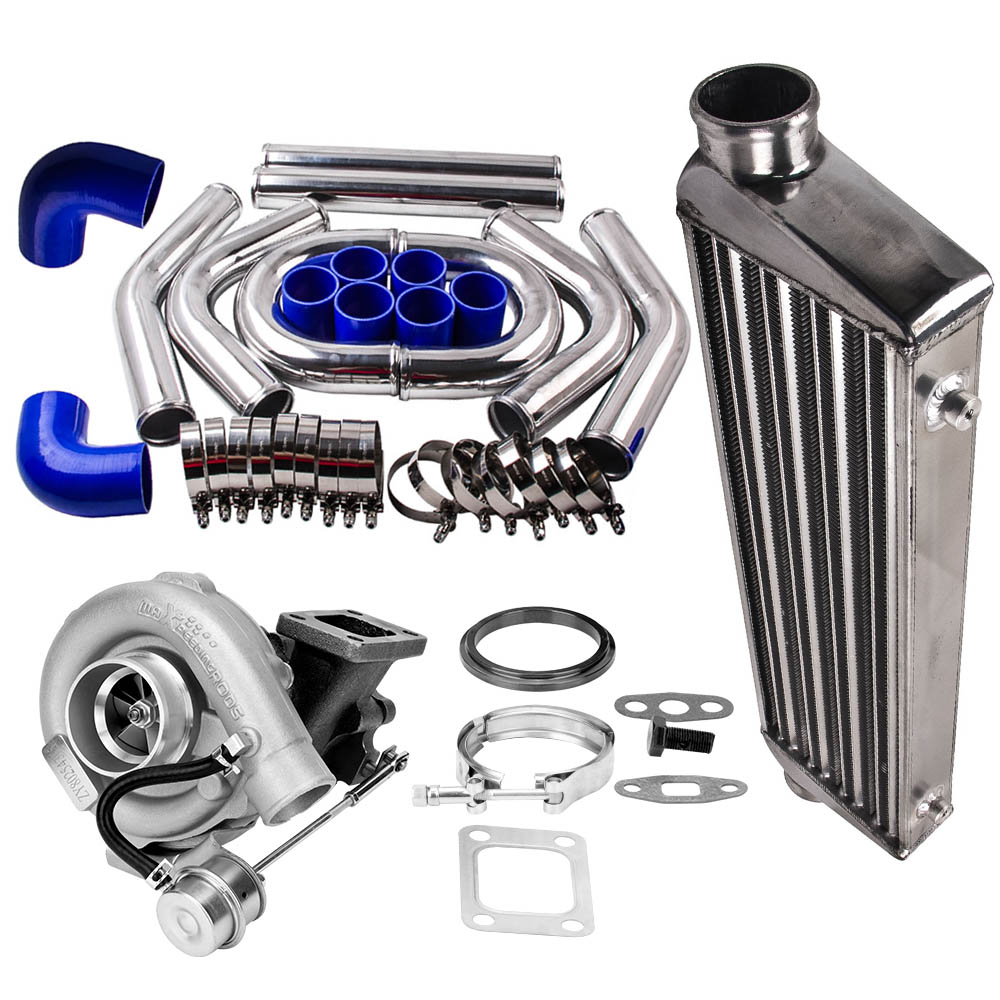

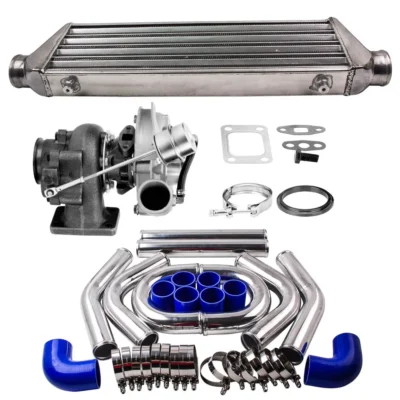

turbocharger
Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet () Flange: V-Band Flange
Turbine Trim: 72.8
Turbine Inducer Diameter:  65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63
Compressor Trim: 44.2
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: 2 Year
Internal Wastegate: Yes

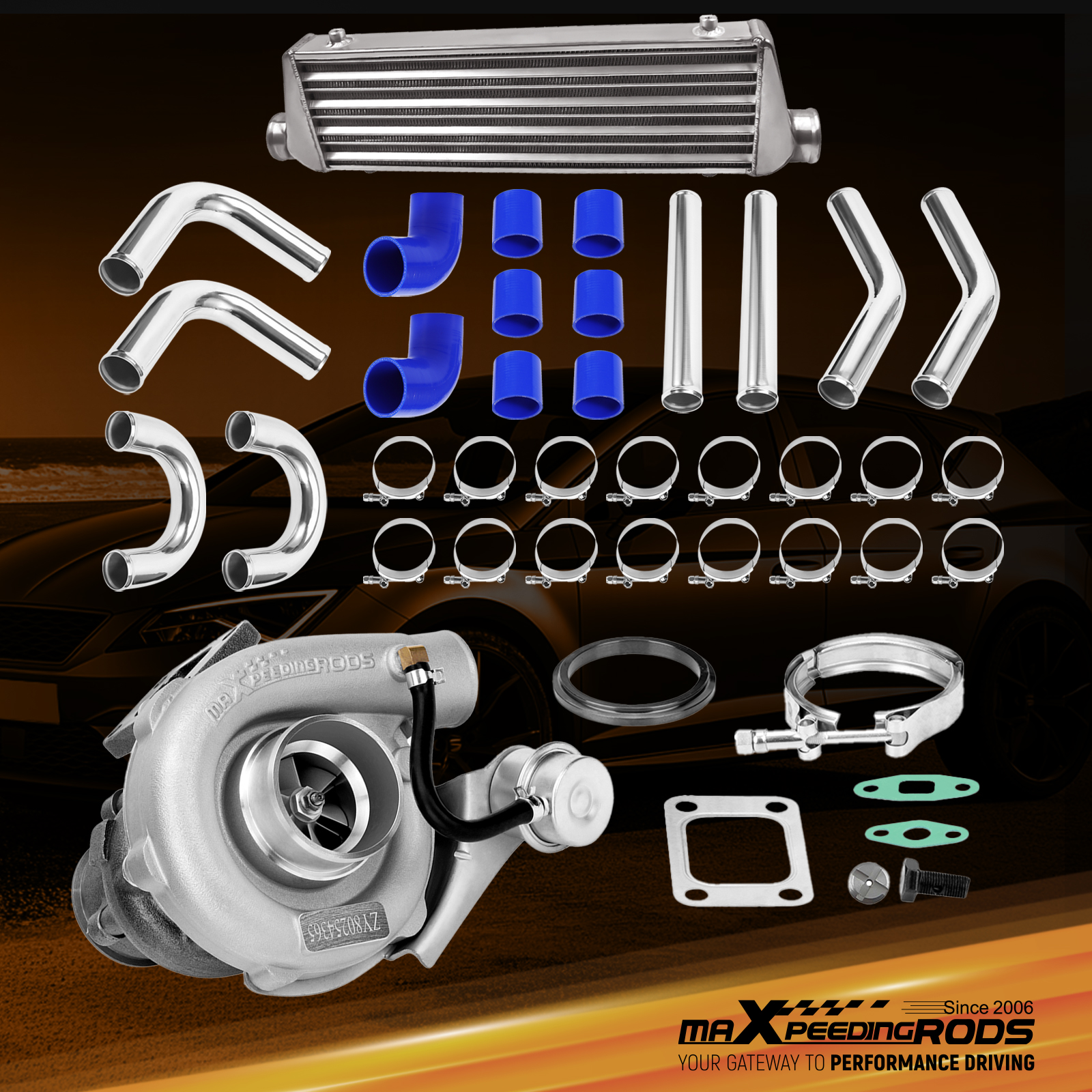

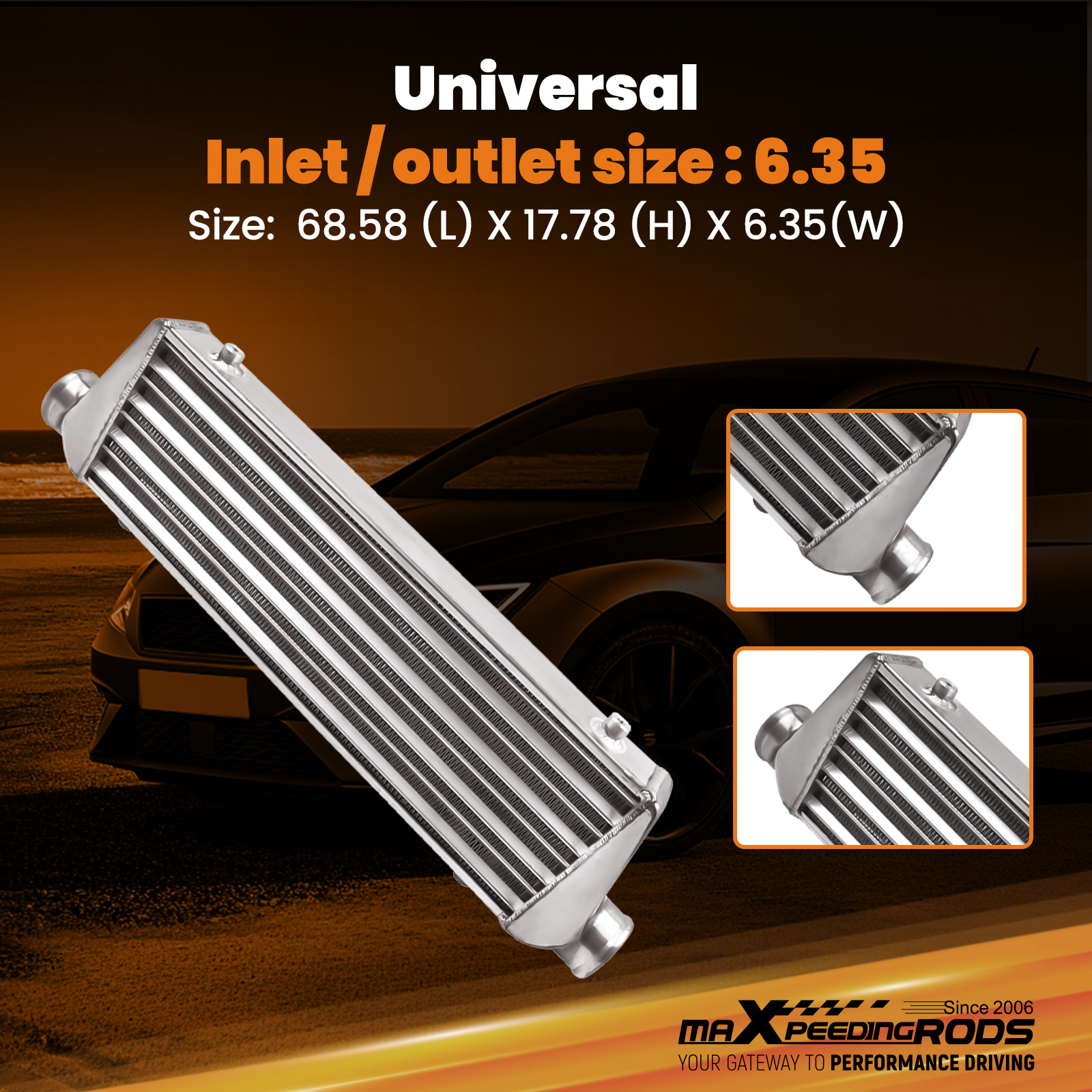

Intercooler

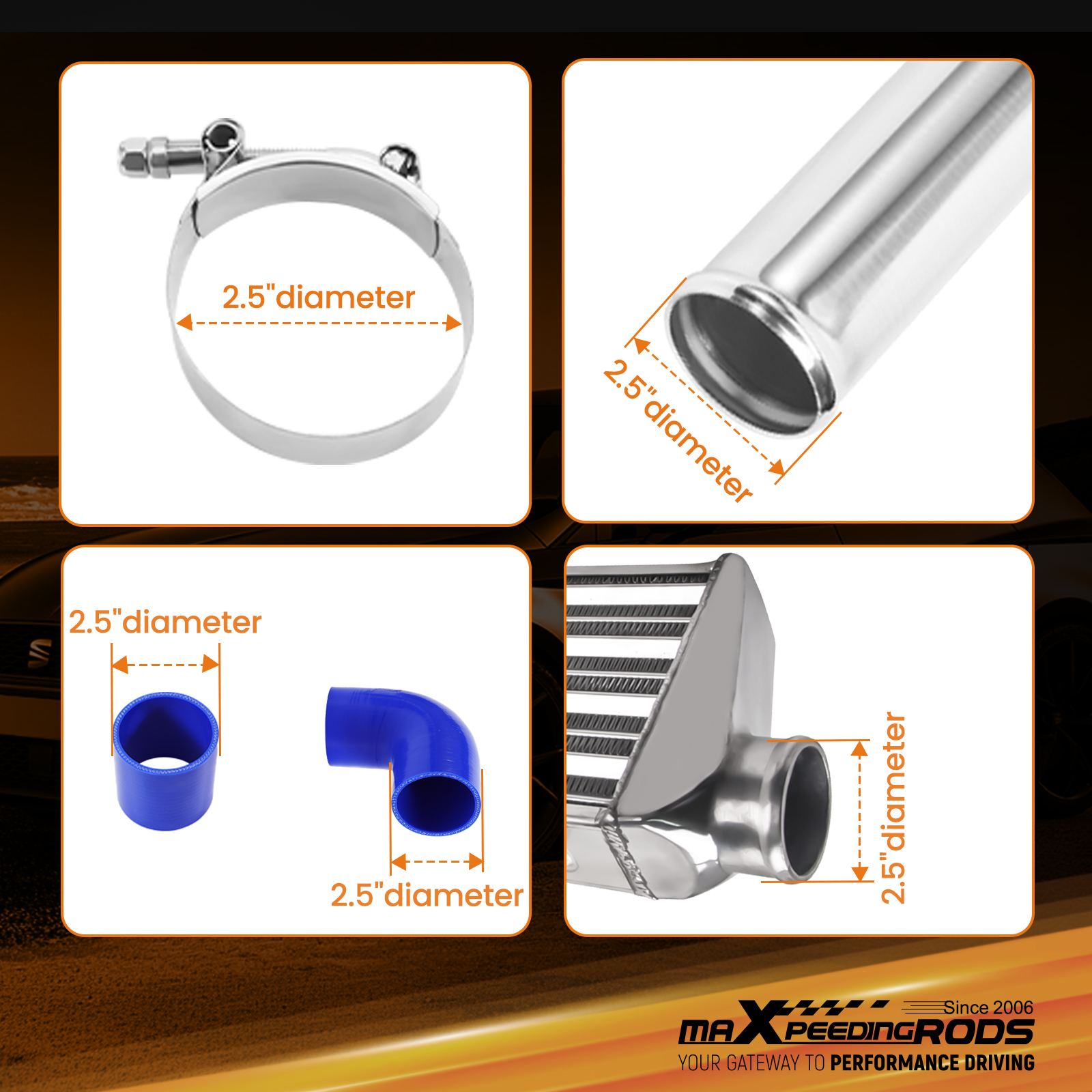

Inlet / Outlet size :  2.5″

Overall size :  27” x 7” x 2.5”

Core size :  21” x 7” x 2.25”

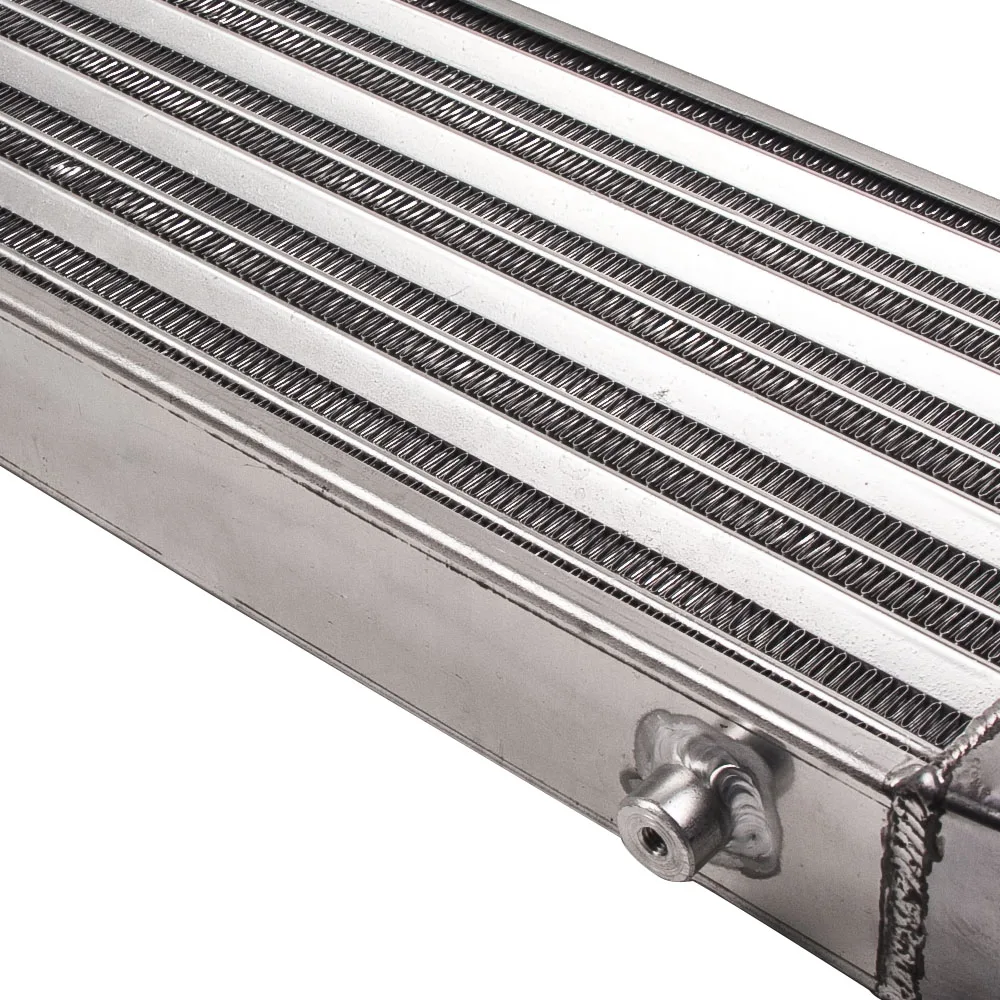

Core design:  Tube & Fin

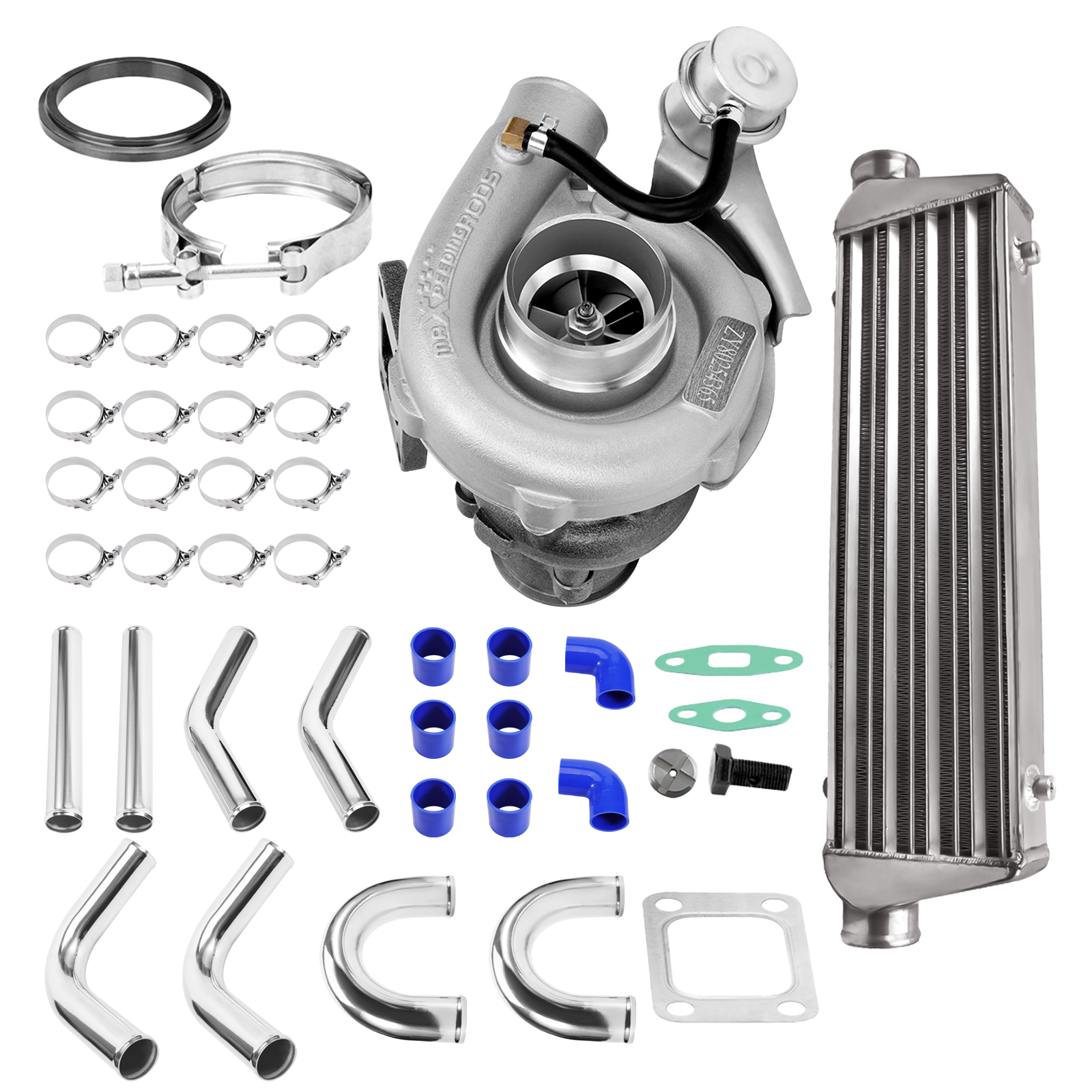

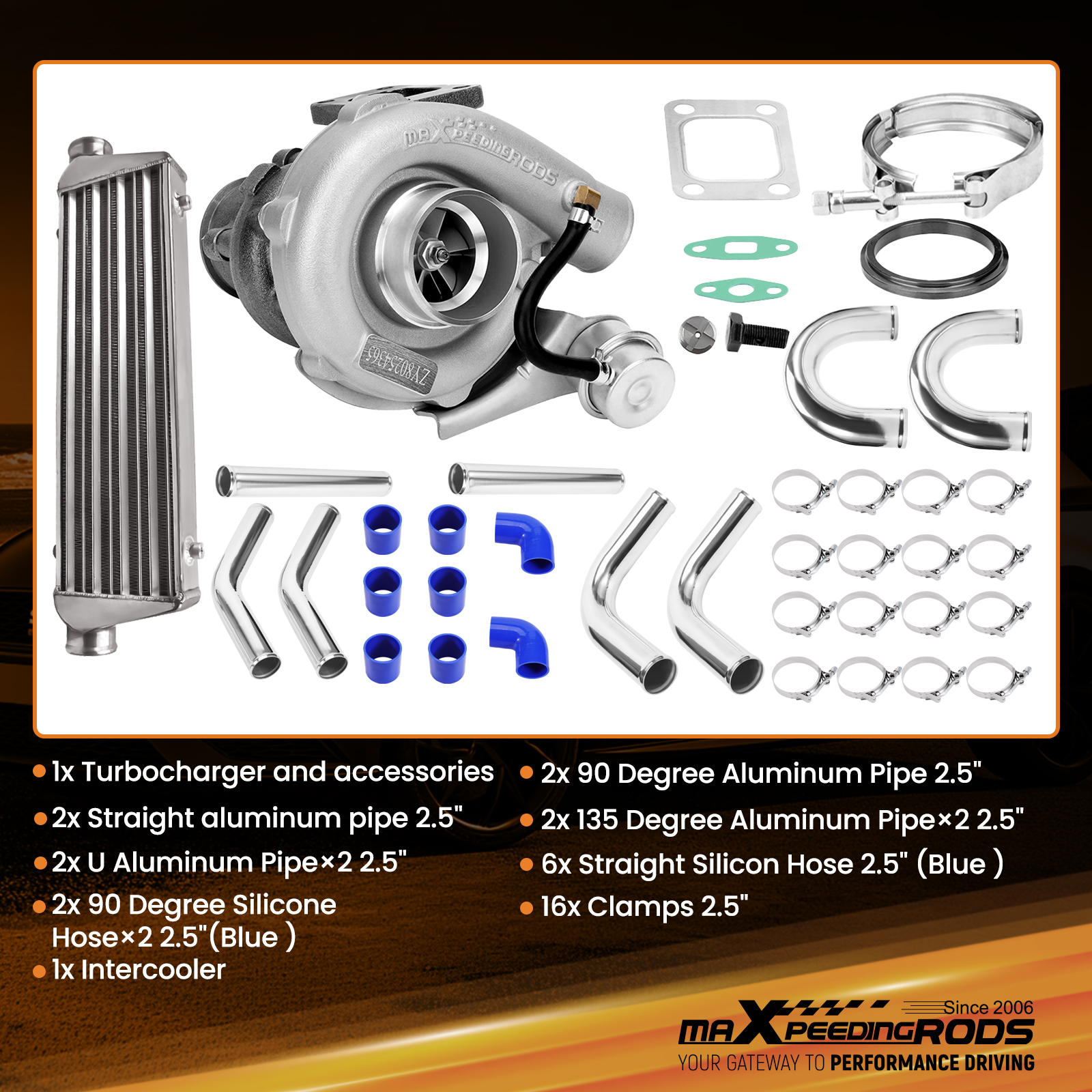

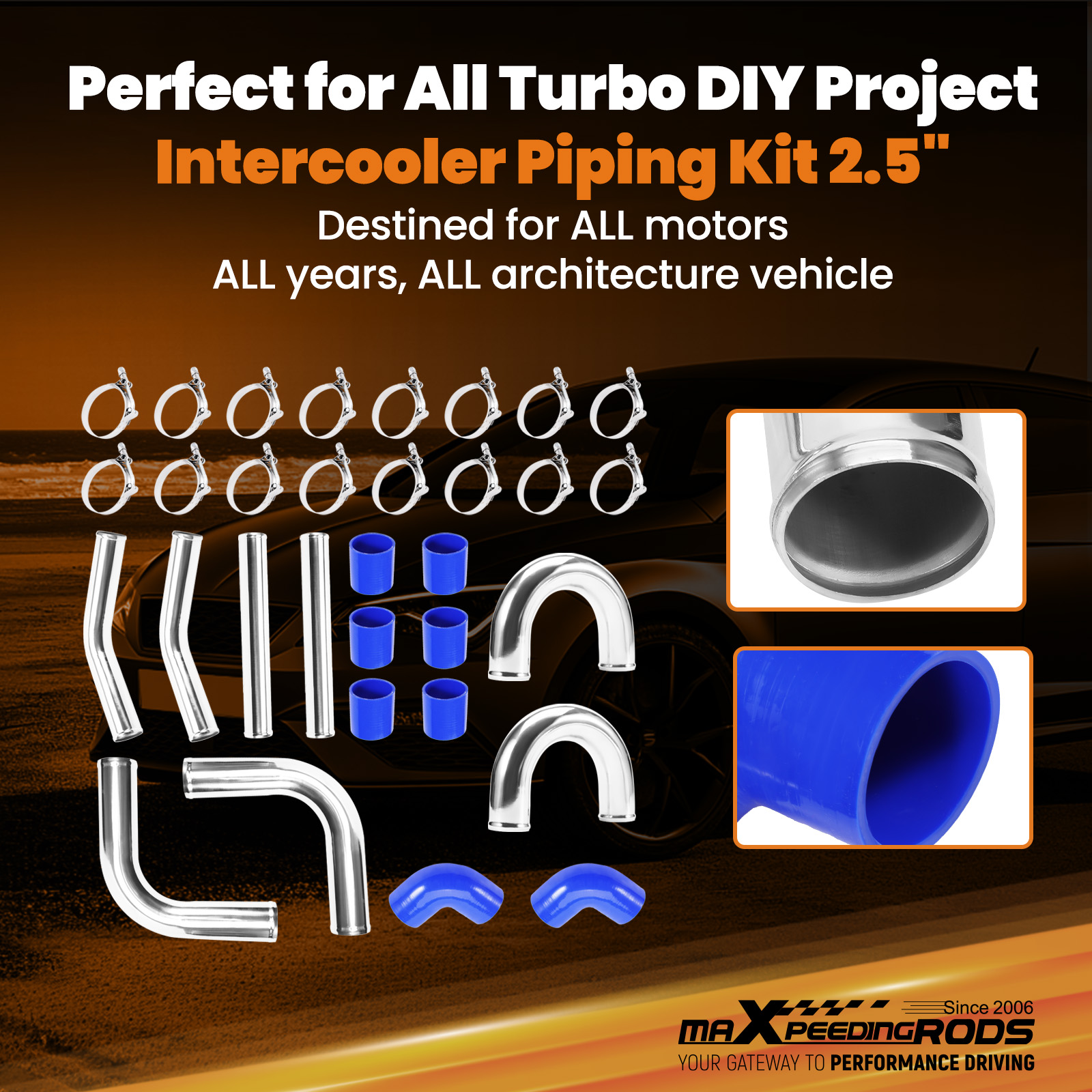

Intercooler Piping kits

2x 90 Degree Aluminum Pipe 2.5″
2x Straight aluminum pipe 2.5″
2x 135 Degree Aluminum Pipe×2 2.5″
2x U Aluminum Pipe×2 2.5″
6x Straight Silicon Hose 2.5″ (Blue )
2x 90 Degree Silicone Hose×2 2.5″(Blue )
16x Clamps 2.5″

Pipe Thickness: 1.8mm

Pipe length: 18”

U Pipe distance：150mm

Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
