Application | Universal Turbo Kit Perfect For 2.5-6.0L engine This Kit Will be able to add 350+HP at 7.5-14.5 PSI. (You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project) for Honda B16/B18, K20, H22, F22 Engines for Nissan SR20DET, RB20/25, for Toyota 1JZ/2JZ, 7MGTE. Also Works for Twin Turbos for GM for SBC, for LSx, for Ford 4.6, 5.0 Engines | |

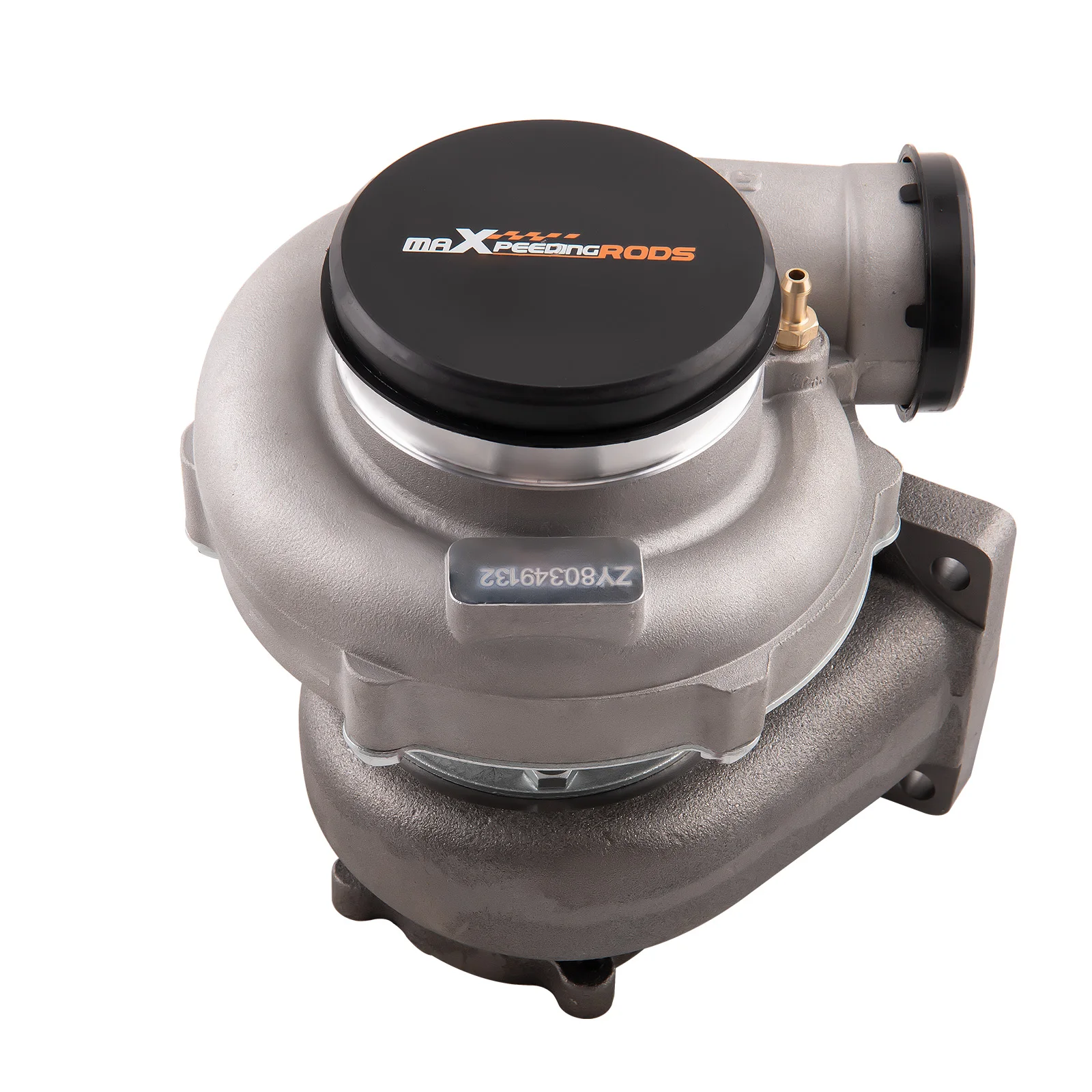

1x GT35 Turbo charger Exhaust Inlet (Turbo Manifold) Flange: T3 FlangeExhaust Outlet (Downpipe) Flange: 4-Bolt Turbine Trim: 84.2 Turbine A/R: 0.63 Turbine Inducer Diameter: 68mm Turbine Exducer Diameter: 62.4mm Compressor Trim: 56.9 Compressor A/R: 0.7 Compressor Inducer Diameter: 61.5mm Compressor Exducer Diameter: 81.5mm Bearing Type: Wet Float Cooling Type: Water + Oil Compress Inlet Size(Air intake): 4 inch (103.5mm) Compressor Outlet Size: 2.5 inch (63.6mm) Wastegate External Wastegate Oil feed/inlet: M10*7/16-24 Oil drian/outlet: 2*M8*1.25 water inlet/outlet: M14* 1.5 Maximum PSI 22 Turbocharger Overall size: 230*180*240 1x intercooler Overall Size 27” x 7” x 2.5” inch. core size: 21*7*2.5 Inlet size is 2.5 inch. 1 x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5″ Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP. 1 X BOV pipe: can install anywhere suitable 1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit 1 x Turbo Boost Controller: Up To 30 PSi Boost 1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo charger to the oil pan. The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life. Material: Stainless Steel Braided 1x 5” 4 in 1 Tachometer: Water Temp Unit Type: Celsius Water Temp Display Range: 40~120 Celsius Oil Temp Unit type: Celsius Oil Temp Display Range: 50~150 Celsius Oil Pressure Unit Type: Bar Oil Pressure Display Range: 0~7 Bar Thread Size of Sensors: 1/8NPT 1x heat shield branket Titanium and Carbon Fiber high temperature wrap: 2500°F max 1x Tachometer | ||
1.Turbo charger * Capable of Boosting Horse Power up to 400+ HP * Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 鈩� * Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 鈩� * Cast aluminium blades with good gas tightness and corrosion resistance. 2. Intercooler * core size:21*7*2.5 cools down the turbocharged air efficiently * Lightweight aluminum racing intercooler锛� * Strong TIG welds will support high PSI levels 3.Boost controller * Can be setup to adjust boost PSI on the fly * Can be adjusted for any PSI level desired * Control your boost with a precise click * Includes complete install kit * Anodized aluminum finish * CNC machined design 4. Turbo Oil returen /Feeding line kit * Stainless Steel Braided * Includes complete install kit * It helps circulate oil from the turbo charger to the oil pan. * The kit provides a anodized look * gives a best cooling performance on your turbo and long lasting life. 5.Blow Off Valve Kit * CNC Billet Aluminum Type RS Style Blow off Valve * Easy Mount Piping Set Included For Bolt-On. * Including all necessary hardwares. * easily adjustable to prevent both permature boost leakage and compressor surge. * Fast response One For Low And High Boost Pressure. * Performance design produces a powerful and aggressive sound * Quality design will not leak under high boost conditions * Flanges can be installed at user discretion 6. 38MM Wastegate * Most reliable wastegates For competition vehicles. * accurate boost control * high quality appearance features Dual port design * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi. 7. 5 Blot Turbo Downpie * CNC machined surface * Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing. 8. BOV pipe/Adapter * can install anywhere suitable 9.5” 4 in 1 Tachometer: * Comes with All the Wiring Necessary for Installation. * All Accessories are Included for Installation. * Back lit for use at night time 10.heat shield branket | ||
Package Include | ||

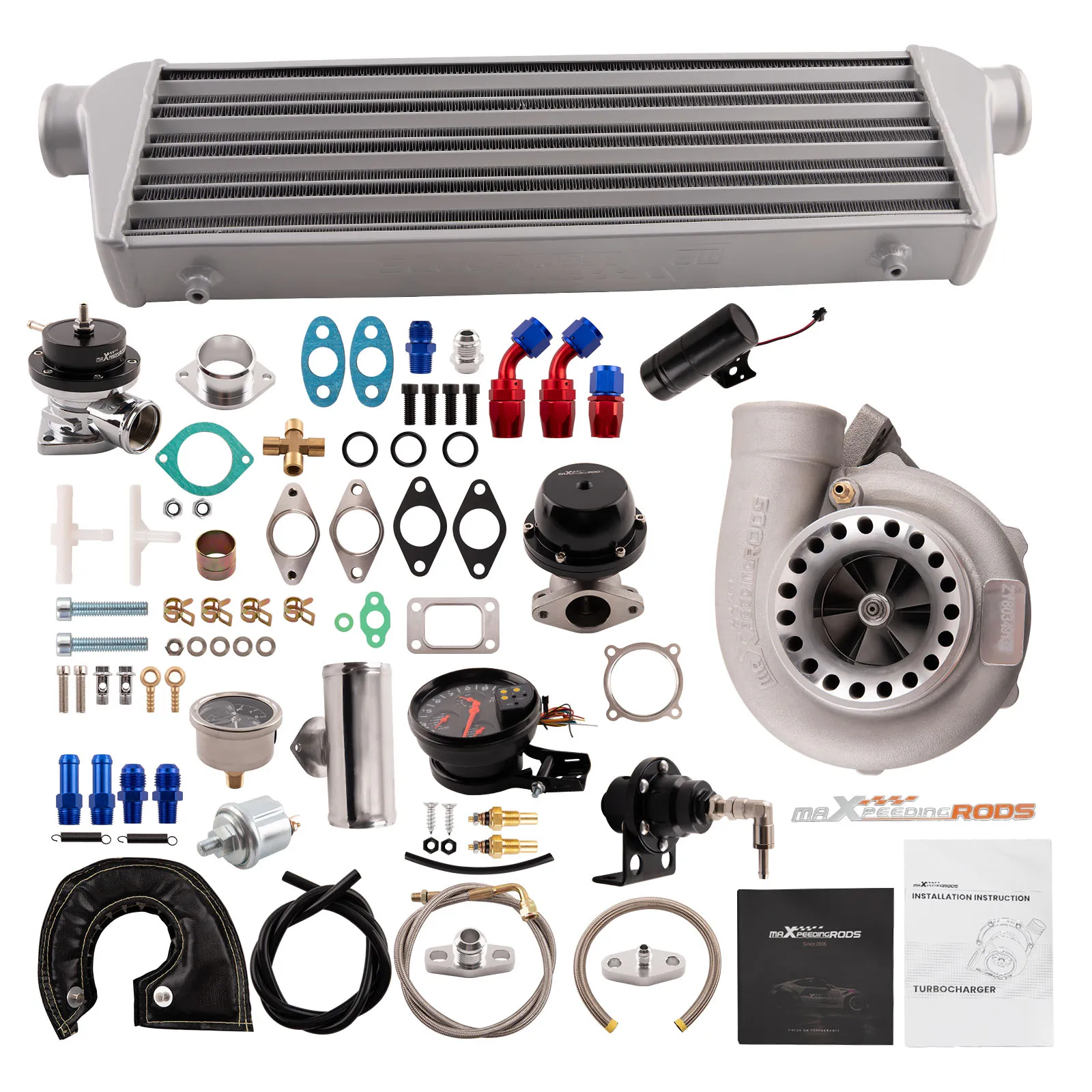

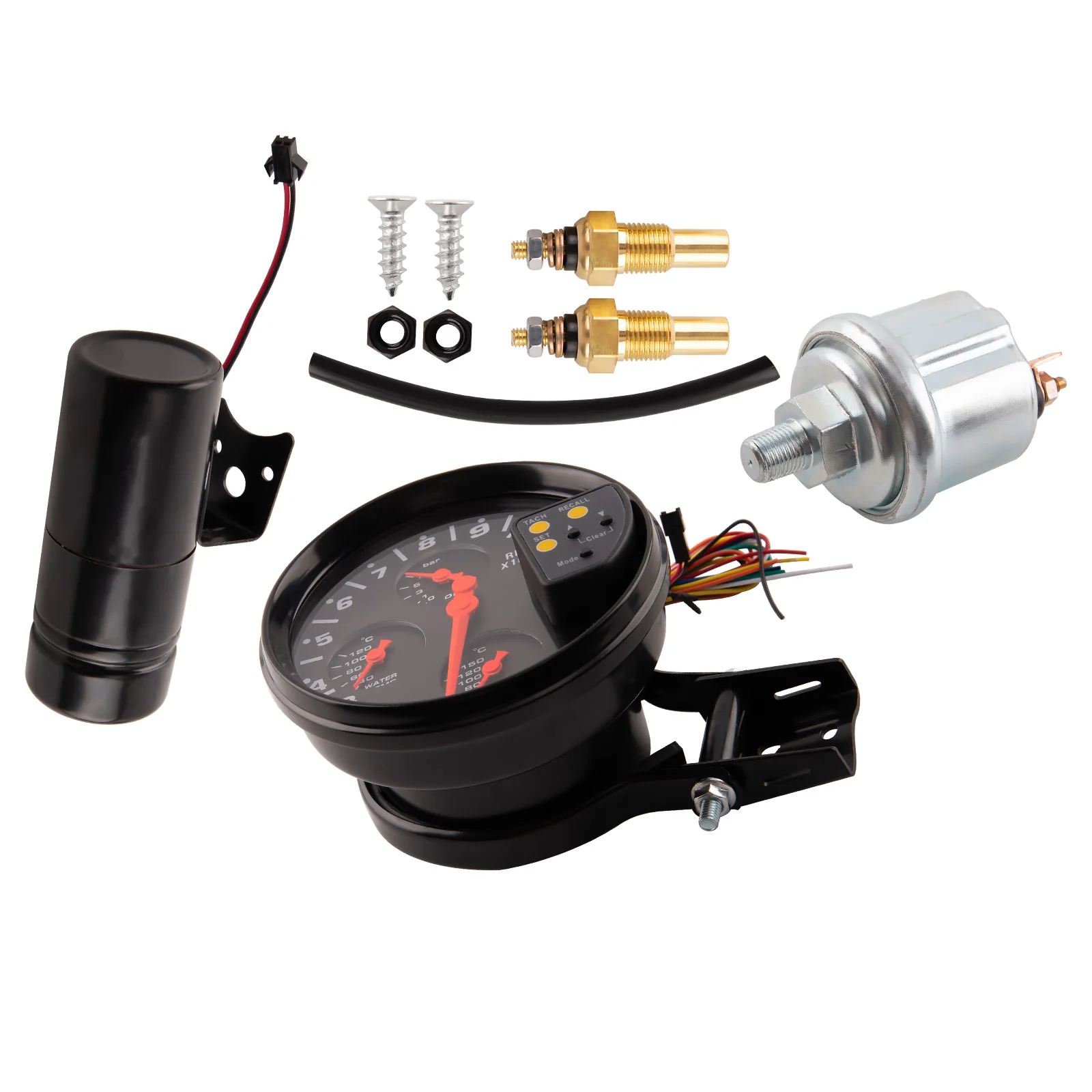

1x GT35 Turbocharger 1x Turbo Intercooler 1x Oil Feed / Return Line 1x Blow Off Valve 1x 35/38mm Wastegate 1x Tachometer 1x BOV Adapter 1x 5″ 4in1 Tachometer 1x Heat shield branket | ||
* Need modifications – Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it’s recommended to advanced players but not for beginners. ) * we will not be responsible for man-made installation damage. | ||
Product Description
