24 Level Damper Coilovers Lowering Suspension For BMW 3 Series E90 E91 2006-2011 RWD | ||
Application | For BMW 3 (E90) (2004-2011) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 318d, 320d, 325d, 330d, 335d. For BMW 3 Touring (E91) (2004-2012) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 320d, 325d, 330d, 335d. For BMW 3 Coupe (E92) (2005-2013) 316i, 318i, 320i,323i,325i,328i,330i,335i,320d,325d,330d, 335d For BMW 3 Convertible (E93) (2006-2013) 318i, 320i, 323i, 325i, 330i, 335i, 320d, 330d, 325d. Note: Fit RWD vehicles only, not fit M3 models. | |
Top Mount | Front pillow ball with camber plate; rear OE top mounts required | |
Damping | 24 levels of rebound damping force | |
Adjustable height | Lowering 25-75mm depending on the vehicle models | |
Spring preload | 7-10 mm | |

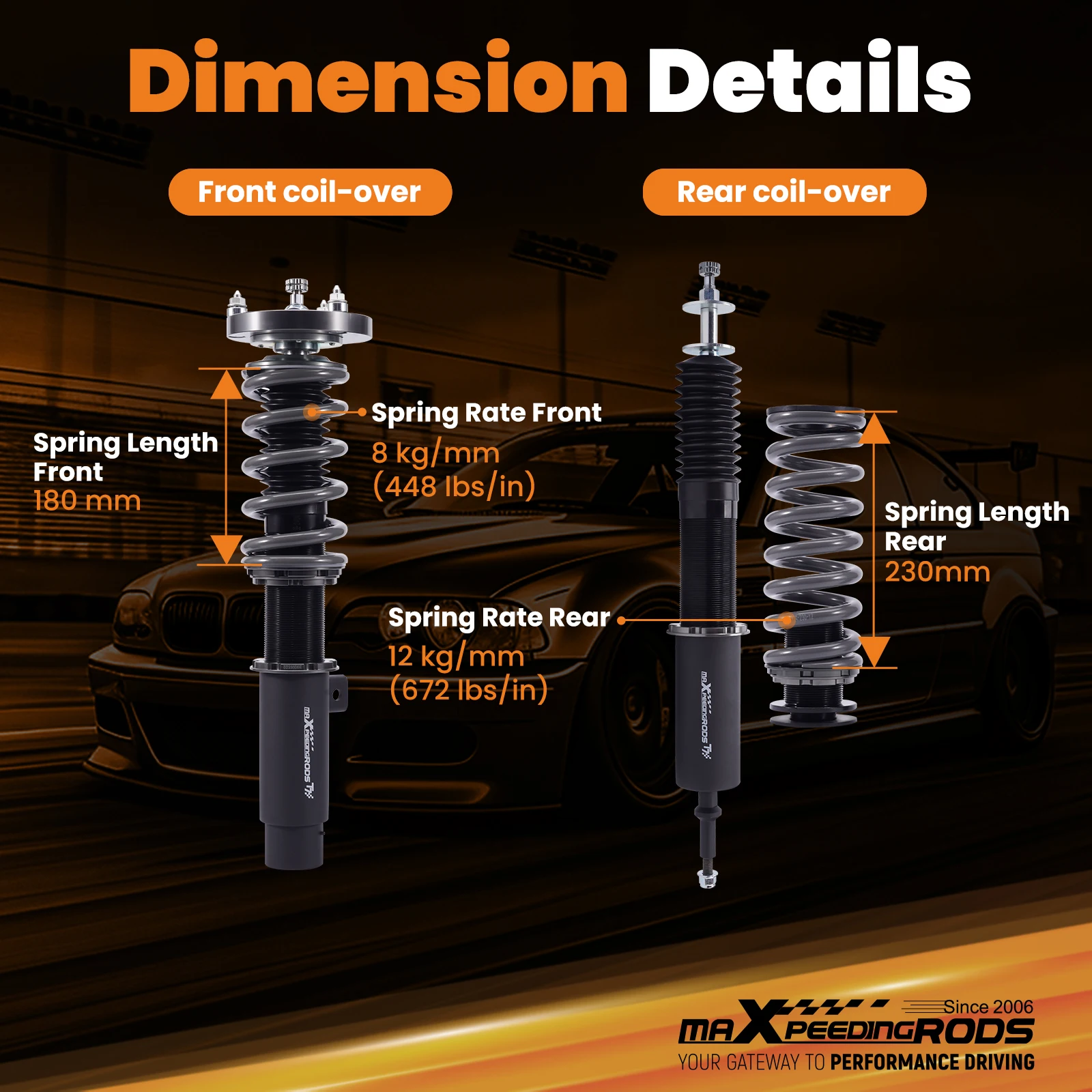

Spring rate Front | 8kg/mm(448lbs/in) | |
Spring rate Rear | 12 kg/mm (672 lbs/in) | |
Front Spring Inner Diameter | 70.5mm | |
Rear Spring Inner Diameter | 62 mm | |
Spring Length Front | 180 mm | |
Spring Length Rear | 230 mm | |

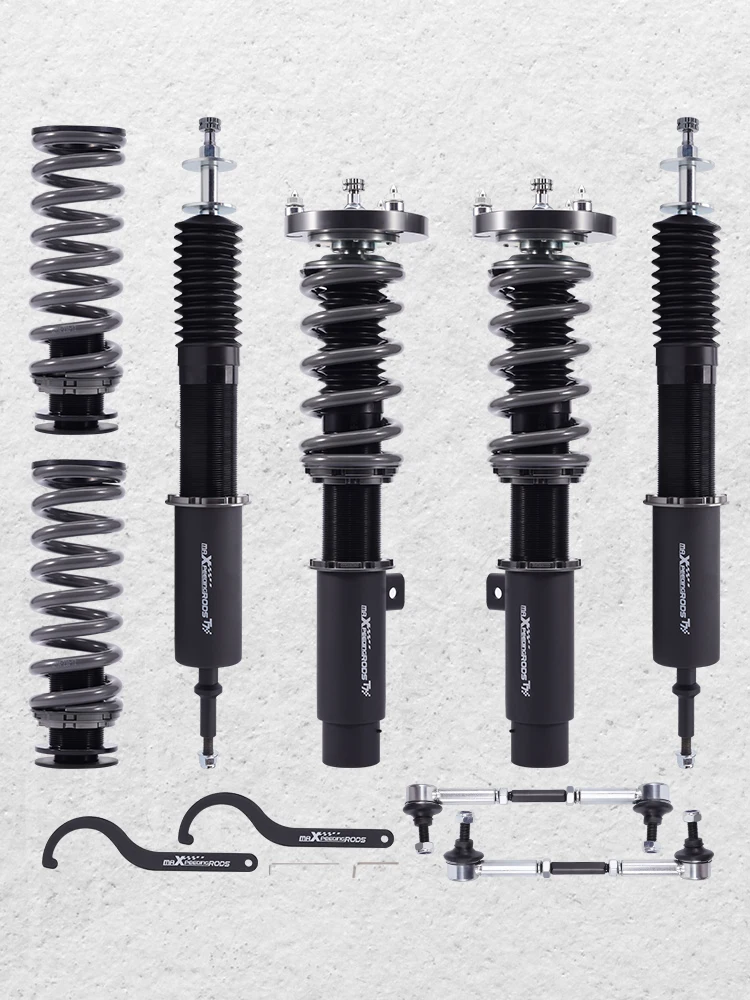

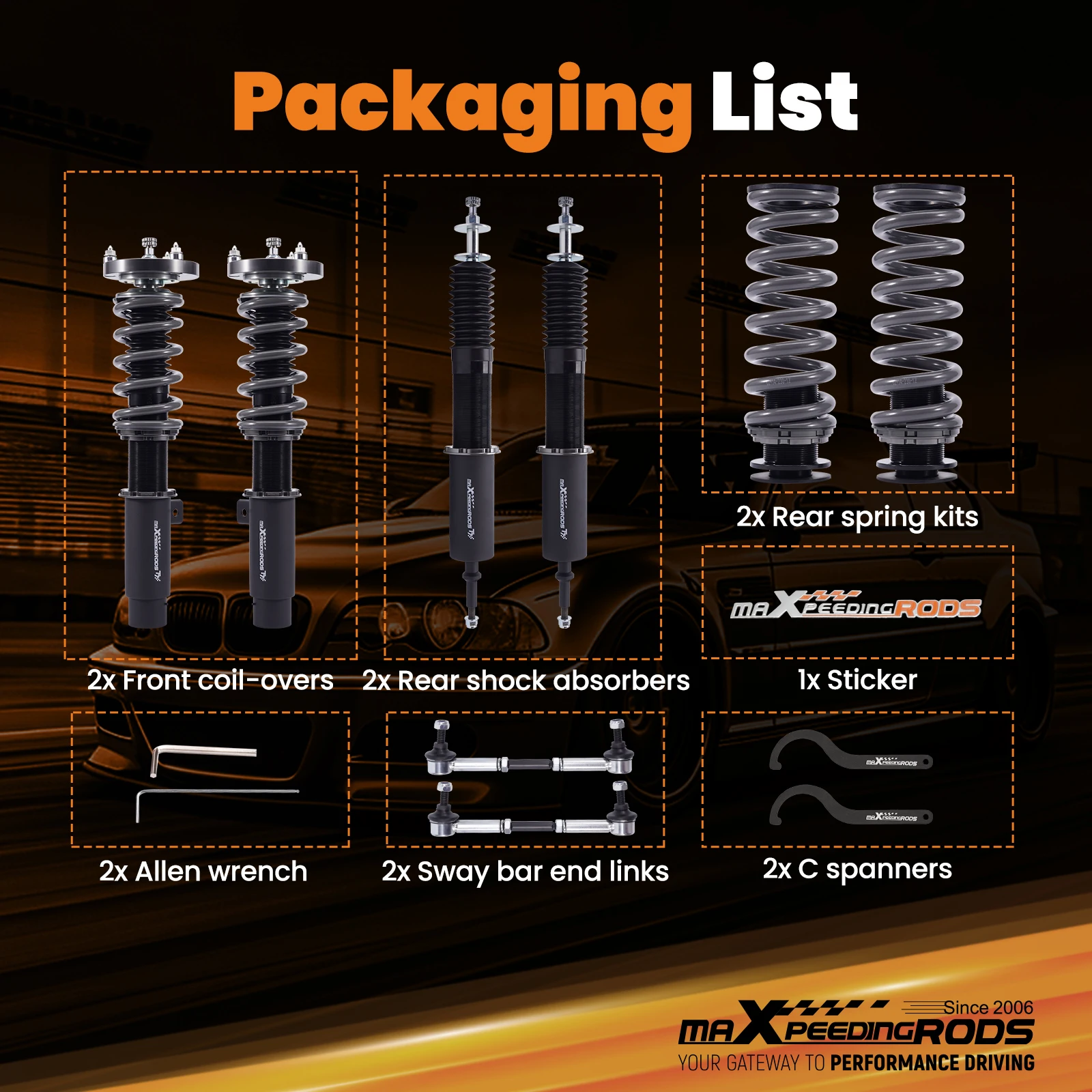

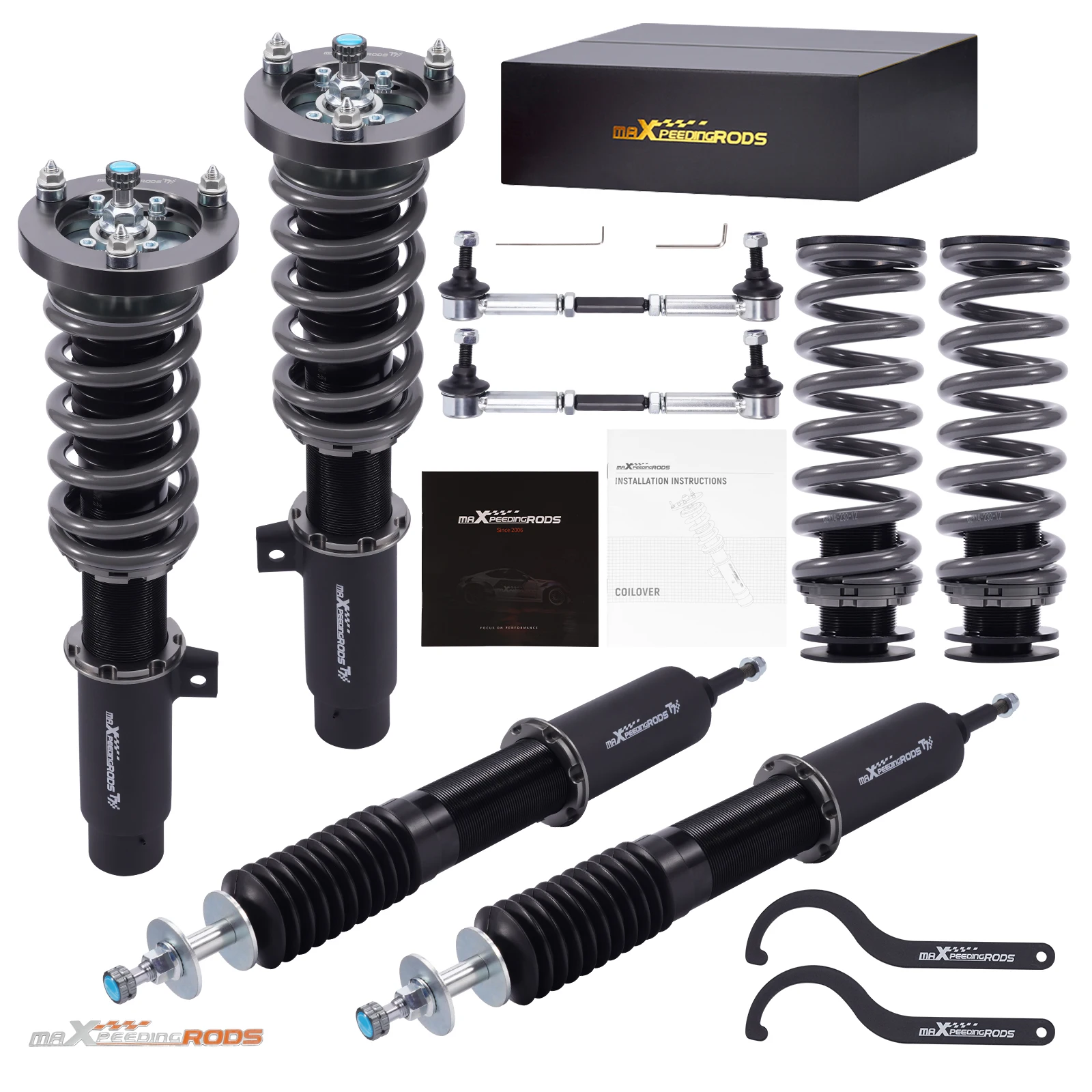

Package Included | 2x front coil-overs 2x rear coil-overs 2x C spanners 2x Allen wrench 1x sticker | |

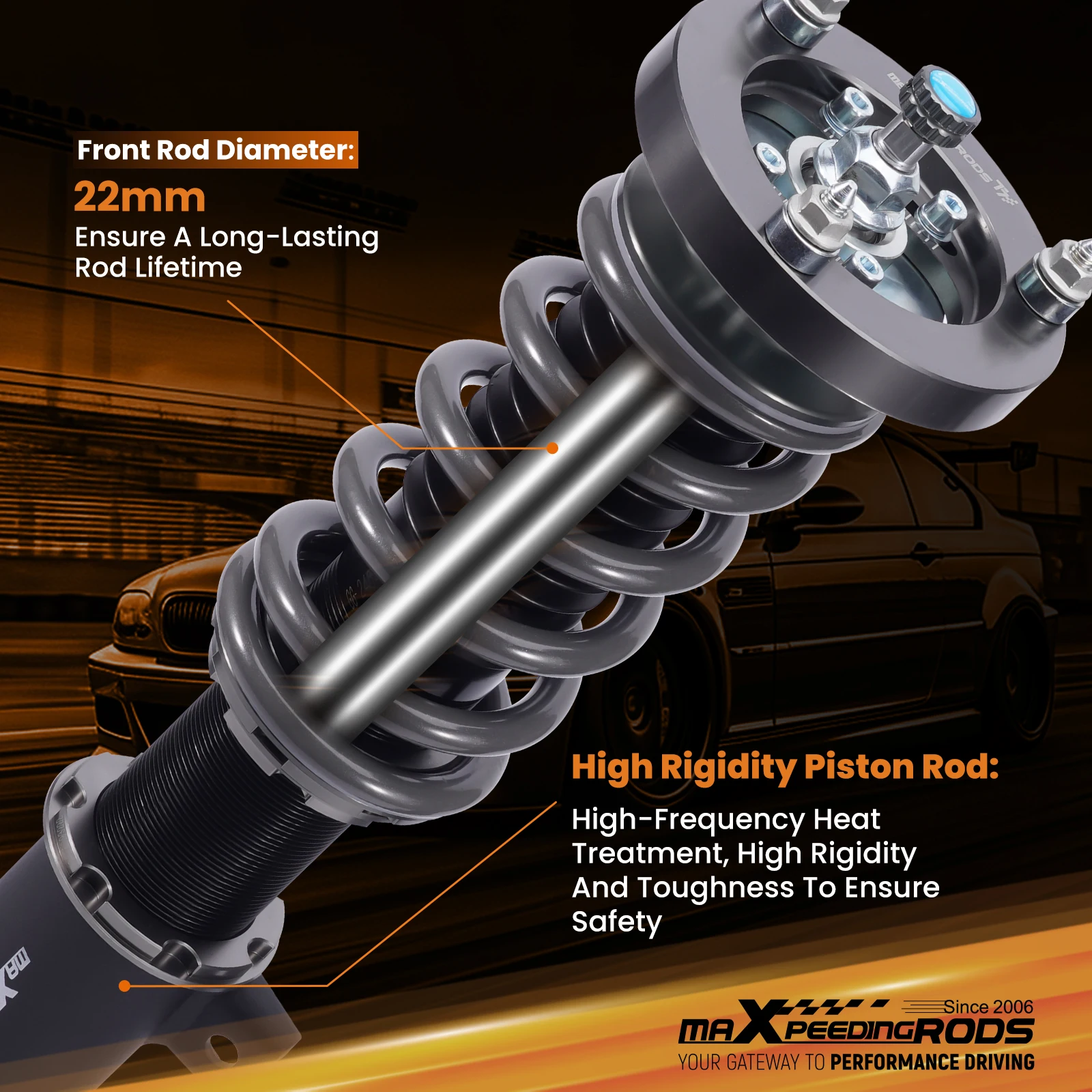

Features – Racing damping oil and spring rates set for occasional track use and daily street use. – Lowered height adjustment from 1″ – 3″ (depending on vehicle models) which adds a more aggressive stance and a lower center of gravity. – Adjustable pre-load spring tension reduces shaking motion. – 24 Clicks of Rebound Adjustments allow you to dial in your coil-overs system perfectly. – High Viscosity Index damper oil—make damping more stable and smooth in wide temperature range. – High Rigidity 55CrSi Steel Cold-bent Coil Springs – CNC machined aluminum top mounts and lockers have excellent strength and save weight. – Highly durable and reliable heavy-duty steel lower mounts. – All inserts come with fitted long rubber boots to protect the damper and be durable. – Advanced Twin-Tube Technology provides excellent handling & control characteristics for most driving conditions – Anti-Corrosion finish anodized aluminum and powder-coated carbon steel parts with a matt-finished surface. – Every part was tested on our professional machine before being assembled and tested by our professional racers on the road. – Clean room assembled maintains a higher level of accuracy and reliability. | 1. Lowered height adjustment from 1″ – 3″ which allow lower center of gravity and also add a more aggressive stance. 2.Pillow ball top mount with camber plate – It improves the steering feel and response.(front) 3.Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.(rear) 4.24 levels of adjustable damper — This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff. 5. Twin-Tube structure —provides excellent handling & control characteristics for most driving conditions. 6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation. 7. Separate height adjustment does not affect damper stroke,Height can be adjusted with coilovers installed on the vehicle. 8.High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance. 9. Height Adjustment tools included. 10. Full rebuildable. 11.Upgraded damper oil—make damping more stable and smooth in wide temperature range. 12.Clean room assembled—maintain higher level of accuracy and reliability. 13.All inserts come with fitted long rubber boots— To protect the damper more well and be durable. | |
